route 17/essex street interchange improvements graphic


Archived Photos

(click on thumbnail photos to enlarge in bottom window)

February 19, 2008

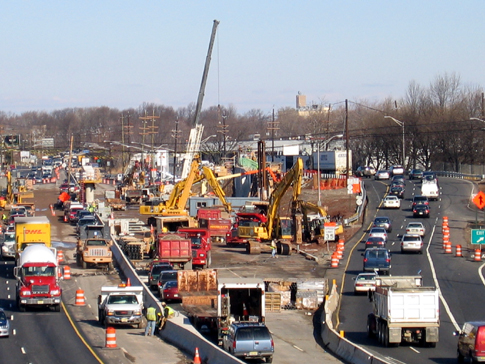

Looking north, construction is in the area of the new bridge with Route 17 traffic being diverted around the work area.

Construction continues in the area of the Lodi Brook Culvert under Essex Street. The hose is a temporary bypass of Lodi Brook (under pumping).

Construction of a precast retaining wall which steps up and connects into the northwest corner of the new bridge abutment.




Looking south along the back side of the west bridge abutment. The finished grade along Essex Street will be raised to above the top of the exposed reinforecement steel.
Crews work on the utility construction on the northbound side of Route 17. Traffic (on left) is traveling along the diversionary road around the bridge work area.
Looking north, construction continues on the median barrier which is adjacent to the northern most column of the new bridge pier.
