route 52 causeway bridge replacement graphic

Archived Photos

(click on thumbnail photos to enlarge in bottom window)

August 23 , 2010

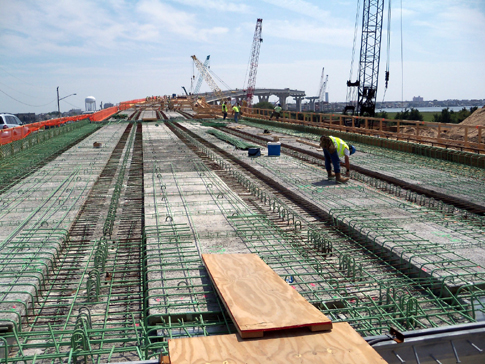

Crews install precast reinforcing steel on the Route 52 southbound bridge deck over Garrets Island.

This view is of the concrete beams installed on the finished Route 52 southbound bridge pier columns on Garrets Island.

This view is of the formwork for the construction of the concrete deck on the Route 52 southbound bridge on Garrets Island.


Crews install steel reinforcement for the pier columns on Beach Thorofare near the Ocean City approach.


This view is of the high level bridge piers with shielding fender system in the Intracoastal Waterway navigational channel in Beach Thorofare.

This view if of the existing Route 52 bridge and the high level bridge piers in the background spanning Beach Thorofare.
.
