NJDEP 2007 Land use/Land Cover Update, Pompton, Pequannock, Wanaque, Ramapo Watershed Management Area, WMA03

Metadata also available as

Metadata:

Identification_Information:
Citation:
Citation_Information:
Originator:
New Jersey Department of Environmental Protection (NJDEP), Office of Information Resources Management (OIRM), Bureau of Geographic Information Systems (BGIS)
Publication_Date: 20100712
Title:
NJDEP 2007 Land use/Land Cover Update, Pompton, Pequannock, Wanaque, Ramapo Watershed Management Area, WMA03
Edition: 20100712
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Trenton, NJ
Publisher: NJ Department of Environmental Protection (NJDEP)
Online_Linkage:
<http://www.state.nj.us/dep/gis/digidownload/zips/lulc07/w03lu07.zip>
Description:
Abstract:
The 2007 LU/LC data set is the fourth in a series of land use mapping efforts that was begun in 1986. Revisions and additions to the initial baseline layer were done in subsequent years from imagery captured in 1995/97, 2002 and 2007. This present 2007 update was created by comparing the 2002 LU/LC layer from NJ DEP's Geographical Information Systems (GIS) database to 2007 color infrared (CIR) imagery and delineating and coding areas of change. Work for this data set was done by Aerial Information Systems, Inc., Redlands, CA, under direction of the New Jersey Department of Environmental Protection (NJDEP), Bureau of Geographic Information System (BGIS). LU/LC changes were captured by adding new line work and attribute data for the 2007 land use directly to the base data layer. All 2002 LU/LC polygons and attribute fields remain in this data set, so change analysis for the period 2002-2007 can be undertaken from this one layer. The classification system used was a modified Anderson et al., classification system. An impervious surface (IS) code was also assigned to each LU/LC polygon based on the percentage of impervious surface within each polygon as of 2007. Minimum mapping unit (MMU) is 1 acre.
ADVISORY: This metadata file contains information for the 2007Land Use/Land Cover (LU/LC) data sets, which were mapped by Watershed Management Area (WMA). There are additional reference documents listed in this file under Supplemental Information which should also be examined by users of these data sets.
As stated in this metadata record's Use Constraints section, NJDEP makes no representations of any kind, including, but not limited to, the warranties of merchantability or fitness for a particular use, nor are any such warranties to be implied with respect to the digital data layers furnished hereunder. NJDEP assumes no responsibility to maintain them in any manner or form. By downloading this data, user agrees to the data use constraints listed within this metadata record.
Purpose:
The data set will provide information for regulators, planners, and others interested in LU/LC changes, and allow them to quantify those changes over time using GIS.
The use of the updated 2007 LU/LC in land use analyses will provide a means of monitoring "the health of the citizens and ecosystems of New Jersey" through the use of diverse applications.
This data set is intended to serve as a resource data set. The NJDEP may change the line work or polygon coding based on more in depth analysis and field inspection.
Supplemental_Information:
Several supplemental documents are available that detail the procedures used to create this update and the previous updates done in 1986, 1995 and 2002. Users of any of these data sets may find it helpful to review these documents before using the data. Each update, including this 2007 data set, is created by editing the previous version, so an understanding of any procedures used in the previous updates may be helpful in interpreting the present version.
A detailed discussion of specific procedures used to create this updated data set is included in
<http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/update.html>
General comments on previous updates are included in <http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/lureadme.html>
Note that the original 1986 baseline data layer was composed of two originally separate layers; the LU/LC from the Integrated Terrain Unit Mapping (ITUM) project and the Freshwater Wetlands (FWW) data from the New Jersey Freshwater Wetlands Mapping Project. NJDEP integrated the two themes into one coverage in 1996. The specific process used to develop the original ITUM data set is discussed in <http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/itum.html>. The process used to integrate the ITUM LU/LC and FWW coverages into one theme, including a discussion of the Upper Wetlands Boundary (UWB) line in the process, is discussed in detail in the <http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/fwwinteg.html>
Also note that included in the baseline LU/LC data set, as part of the original land use layer from the ITUM mapping, were the statewide hydrology boundaries. These hydrologic boundaries were replaced during the 2002 update with boundaries mapped from the 2002 imagery.
A description of the land use codes used in this data set is given in <http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/anderson2007.html>
This document is edited version of 'A Land Use and Land Cover Classification System for Use with Remote Sensor Data', U. S. Geological Survey Professional Paper 964, 1976.
The COWARDIN86 and CLASS86 codes used to describe the non-tidal wetlands are codes generated during the original FWW mapping program. CLASS86 is a numeric code that represents each of the specific COWARDIN86 descriptive codes which follow the U.S. Fish and Wildlife Cowardin Classification System, (with some modifications specific to the New Jersey program). These two codes have been retained in all subsequent land use updates to identify those wetland polygons that were originally mapped as part of that FWW mapping program. Wetland polygons existing in the land use layers, including the 2007 update, which have the COWARDIN86 field valued as NULL, and CLASS86 code of 0 were mapped as part of the land use mapping efforts and not the FWW mapping effort. Note also that the COWARDIIN86 values have not been updated since the original mapping, although the wetland Anderson classification land use code may have been changed to reflect a change in the wetland polygon composition. This position was followed because it was felt that with the level of field work used in developing the 2007 data, it would be difficult to assign new Cowardin classes to the modified wetlands data with the same level of detail possible with the original FWW wetlands mapping. Note also that these attributes were named CLASS and COWARDIN in previous land use updates. They were renamed for this effort to CLASS86 and COWARDIN86 to indicate that the values in these fields do reflect wetland polygon classification from the original FWW mapping based on the 1986 photography.
All supplemental documents are available in HTML format as follows:
<http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/codelist2007.html>
<http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/anderson2007.html>
<http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/update.html>
<http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/lureadme.html>
<http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/fww.html>
<http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/itum.html>
<http://www.state.nj.us/dep/gis/digidownload/metadata/lulc07/fwwinteg.html>
Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 2007
Currentness_Reference: ground condition
Status:
Progress: Complete
Maintenance_and_Update_Frequency: Unknown
Spatial_Domain:
Bounding_Coordinates:
West_Bounding_Coordinate: -74.539749
East_Bounding_Coordinate: -74.119889
North_Bounding_Coordinate: 41.191727
South_Bounding_Coordinate: 40.896923
Keywords:
Theme:
Theme_Keyword_Thesaurus: None
Theme_Keyword: land use
Theme_Keyword: land cover
Theme_Keyword: watershed management areas
Theme_Keyword: wetlands
Theme_Keyword: impervious surface
Theme_Keyword: change analysis
Theme_Keyword: wma
Theme_Keyword: water quality
Theme_Keyword: Anderson
Theme_Keyword: Cowardin
Theme_Keyword: NJDEP
Theme_Keyword: watersheds
Theme_Keyword: wma
Theme:
Theme_Keyword_Thesaurus: ISO 19115 Topic Category
Theme_Keyword: planningCadastre
Theme:
Theme_Keyword_Thesaurus: NJGIN
Theme_Keyword: njfw_lulc
Place:
Place_Keyword_Thesaurus: None
Place_Keyword: New Jersey
Place_Keyword: NJ
Place_Keyword: Pompton
Place_Keyword: Pequannock
Place_Keyword: Wanaque
Place_Keyword: Ramapo
Place_Keyword: WMA03
Temporal:
Temporal_Keyword_Thesaurus: None
Temporal_Keyword: 2007
Temporal_Keyword: 2002
Access_Constraints:
No access constraints but users must abide by special use constraints.
Use_Constraints:
ADVISORY:
New Jersey Department of Environmental Protection (NJDEP)
Data Distribution Agreement
I. Description of Data to be Provided.
The data provided herein are distributed subject to the following conditions and restrictions:
SUBJECT DATA LAYERS
For all data contained herein, NJDEP makes no representations of any kind, including, but not limited to, the warranties of merchantability or fitness for a particular use, nor are any such warranties to be implied with respect to the digital data layers furnished hereunder. NJDEP assumes no responsibility to maintain them in any manner or form.
II. Terms of Agreement
1. Digital data received from the NJDEP are to be used solely for internal purposes in the conduct of daily affairs.
2. The data are provided, as is, without warranty of any kind and the user is responsible for understanding the accuracy limitations of all digital data layers provided herein, as documented in the accompanying cross-reference files (see SUPPLEMENTAL INFORMATION). Any reproduction or manipulation of the above data must ensure that the coordinate reference system remains intact.
3. Digital data received from the NJDEP may not be reproduced or redistributed for use by anyone without first obtaining written permission from the NJDEP. This clause is not intended to restrict distribution of printed mapped information produced from the digital data.
4. Any maps, publications, reports, or other documents produced as a result of this project that utilize NJDEP digital data will credit the NJDEP's Geographic Information System (GIS) as the source of the data with the following credit/disclaimer:
"This (map/publication/report) was developed using New Jersey Department of Environmental Protection Geographic Information System digital data, but this secondary product has not been verified by NJDEP and is not state-authorized."
5. Users shall require any independent contractor, hired to undertake work that will utilize digital data obtained from the NJDEP, to agree not to use, reproduce, or redistribute NJDEP GIS data for any purpose other than the specified contractual work. All copies of NJDEP GIS data utilized by an independent contractor will be required to be returned to the original user at the close of such contractual work.
Users hereby agree to abide by the use and reproduction conditions specified above and agree to hold any independent contractor to the same terms. By using data provided herein, the user acknowledges that terms and conditions have been read and that the user is bound by these criteria.
Point_of_Contact:
Contact_Information:
Contact_Person_Primary:
Contact_Person: John Tyrawski
Contact_Organization: NJDEP/BGIS
Contact_Position: Research Scientist
Contact_Address:
Address_Type: mailing and physical address
Address: 401 East State Street, PO Box 428
City: Trenton
State_or_Province: NJ
Postal_Code: 08625-0428
Country: USA
Contact_Voice_Telephone: 609-777-0672
Contact_Facsimile_Telephone: 609-292-7900
Contact_Electronic_Mail_Address: gisnet@dep.state.nj.us

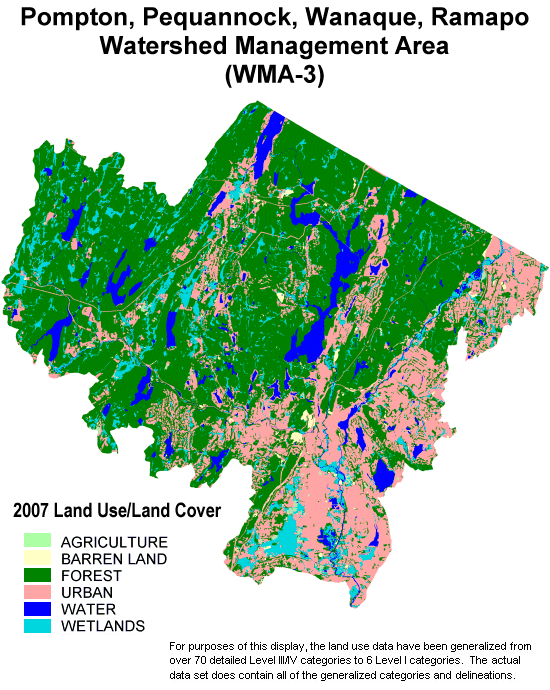

Browse_Graphic:
Browse_Graphic_File_Name:
<http://www.nj.gov/dep/gis/digidownload/images/lulc07/w03lu07.gif>
Browse_Graphic_File_Description: 2007 Level I Land Use/Land Cover
Browse_Graphic_File_Type: GIF
Data_Set_Credit:
NJ Department of Environmental Protection (NJDEP), Office of Information Resources Management (OIRM), Bureau of Geographic Information System (BGIS)
Native_Data_Set_Environment:
Microsoft Windows XP Version 5.1 (Build 2600) Service Pack 3; ESRI ArcCatalog 9.3.1.3000
Data_Quality_Information:
Attribute_Accuracy:
Attribute_Accuracy_Report:
Targeted windshield field surveys done by the contractor during data preparation. NJDEP checked for invalid attribute codes and corrected as needed. Edgematching to adjacent data layers checked through visual inspection of adjacent data sets, and through running topological checks.
Logical_Consistency_Report:
Polygon topology exists. Data were reviewed for correct topological structure, and for delineation and coding accuracies.
Completeness_Report:
Data is available for 20 Watershed Management Areas of New Jersey as FINALS.
Positional_Accuracy:
Horizontal_Positional_Accuracy:
Horizontal_Positional_Accuracy_Report:
Features mapped from digital imagery having a ground accuracy of +/- four feet.
Vertical_Positional_Accuracy:
Vertical_Positional_Accuracy_Report: NA
Lineage:
Source_Information:
Source_Citation:
Citation_Information:
Originator:
New Jersey Office of Information Technology (OIT), Office of GIS (OGIS)
Publication_Date: 20081001
Title: New Jersey 2007 - 2008 High Resolution Orthophotography
Publication_Information:
Publication_Place: Trenton, NJ
Publisher: NJ Office of Information Technology (OIT), Office of GIS (OGIS)
Online_Linkage: https://njgin.state.nj.us/NJ_NJGINExplorer/DataDownloads.jsp
Source_Scale_Denominator: 2400
Type_of_Source_Media: color infrared digital imagery
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 2008
Source_Currentness_Reference: ground condition
Source_Citation_Abbreviation: 2007 orthos
Source_Contribution:
Land use/land cover for 2007 was digitized directly from the 2007 digital imagery using interactive editing
Process_Step:
Process_Description:
The 2002 land use/land cover data set was displayed over 2007 CIR digital imagery. New line work and codes needed to describe the land use conditions interpreted from the 2007 imagery were added directly to the 2002 layer through interactive editing. Photo-interpretation, interactive editing, field surveys and initial QA/QC done by Aerial Information Systems, Redlands, CA, under the direction of the NJDEP/BGIS.
The baseline 2002 data sets edited in this project were prepared by NJDEP/BGIS, from the original 2002 Land Use/Land Cover Update layers. The original layers included both 2002 and 1995 land use codes and linework. The 1995 codes and linework were removed by dissolving on the critical 2002 land use attributes. This produced layers that included only the 2002 codes and linework. It was these dissolved layers that were edited in this present project . Final QA/QC and final data set formatting for the 2007 update layers was done by NJDEP/BGIS.
Land use/land cover in 2007 was captured by adding additional line work and codes to the base layer, and filling in specific attribute fields that describe the 2007 land use/land cover ground conditions. All 2002 codes and line work remain in the data set so that change analysis can be performed on all polygons using this one updated data set. The 2002 polygons and codes were updated if it was felt that original mapped lines or land use classifications of any 2002 polygon needed to be modified based on the better 2007 imagery. In addition to the lu/lc codes, an impervious surface estimate was made for every polygon. This was a visual estimate and not a measured value. Data sets were processed and delivered by Watershed Management Area (WMA).
Note that the boundaries for two WMAs, 5 and 7, underwent major modifications between the time the 2002 and 2007 land use projects were undertaken, with a large portion of the former WMA7 now included as part of WMA5. The data for the present 2007 update reflects the new boundaries for these two management areas.
Process_Date: 2010
Spatial_Data_Organization_Information:
Direct_Spatial_Reference_Method: Vector
Point_and_Vector_Object_Information:
SDTS_Terms_Description:
SDTS_Point_and_Vector_Object_Type: G-polygon
Point_and_Vector_Object_Count: 20065
Spatial_Reference_Information:
Horizontal_Coordinate_System_Definition:
Planar:
Map_Projection:
Map_Projection_Name: Transverse Mercator
Transverse_Mercator:
Scale_Factor_at_Central_Meridian: 0.999900
Longitude_of_Central_Meridian: -74.500000
Latitude_of_Projection_Origin: 38.833333
False_Easting: 492125.000000
False_Northing: 0.000000
Planar_Coordinate_Information:
Planar_Coordinate_Encoding_Method: coordinate pair
Coordinate_Representation:
Abscissa_Resolution: 0.000000
Ordinate_Resolution: 0.000000
Planar_Distance_Units: survey feet
Geodetic_Model:
Horizontal_Datum_Name: North American Datum of 1983
Ellipsoid_Name: Geodetic Reference System 80
Semi-major_Axis: 6378137.000000
Denominator_of_Flattening_Ratio: 298.257222
Vertical_Coordinate_System_Definition:
Altitude_System_Definition:
Altitude_Datum_Name: North American Vertical Datum of 1988
Altitude_Resolution: 0.000122
Altitude_Distance_Units: feet
Altitude_Encoding_Method:
Explicit elevation coordinate included with horizontal coordinates
Entity_and_Attribute_Information:
Detailed_Description:
Entity_Type:
Entity_Type_Label: w03lu07
Entity_Type_Definition:
NJDEP 2007 Land use/Land Cover Update, Pompton, Pequannock, Wanaque, Ramapo Watershed Management Area, WMA03
Entity_Type_Definition_Source: NJDEP/OIRM/BGIS
Attribute:
Attribute_Label: FID
Attribute_Definition: Internal feature number.
Attribute_Definition_Source: ESRI
Attribute_Domain_Values:
Unrepresentable_Domain:
Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute_Label: Shape
Attribute_Definition: Feature geometry.
Attribute_Definition_Source: ESRI
Attribute_Domain_Values:
Unrepresentable_Domain: Coordinates defining the features.
Attribute:
Attribute_Label: ACRES
Attribute_Definition: Acreage of each polygon, calculated as SHAPE_AREA/43560
Attribute_Definition_Source: ESRI
Attribute_Domain_Values:
Unrepresentable_Domain: Acreage varies for each polygon
Attribute:
Attribute_Label: LU07
Attribute_Definition:
Numeric 4 digit code representing land use/land cover category, (2007)
Attribute_Definition_Source:
Modified Anderson classification system (see Land Use/Land Cover Classification System (2007).html)
Attribute_Domain_Values:
Codeset_Domain:
Codeset_Name: Modified Anderson land use/land cover classification system
Codeset_Source: Land Use/Land Cover Classification System (2007).html
Attribute:
Attribute_Label: LABEL07
Attribute_Definition: Description of land use/land cover category, (2007)
Attribute_Definition_Source:
Modified Anderson classification system (see Land Use/Land Cover Classification System (2007).html)
Attribute_Domain_Values:
Codeset_Domain:
Codeset_Name: Modified Anderson land use/land cover classification system
Codeset_Source: Land Use/Land Cover Classification System (2007).html
Attribute:
Attribute_Label: TYPE07
Attribute_Definition: Generalized (Level I) land use/land cover category, (2007)
Attribute_Definition_Source:
Modified Anderson classification system (see Land Use/Land Cover Classification System (2007).html)
Attribute_Domain_Values:
Codeset_Domain:
Codeset_Name: Modified Anderson land use/land cover classification system
Codeset_Source: Land Use/Land Cover Classification System (2007).html
Attribute:
Attribute_Label: IS07
Attribute_Definition:
Percent of each land use polygon covered by impervious surface for 2007
Attribute_Definition_Source: NJDEP
Attribute_Domain_Values:
Range_Domain:
Range_Domain_Minimum: 0
Range_Domain_Maximum: 100
Attribute_Units_of_Measure: percent
Attribute_Measurement_Resolution: 5
Attribute:
Attribute_Label: ISACRES07
Attribute_Definition: Acreage of each polygon covered by impervious surfaces for 2007
Attribute_Definition_Source: Calculated from expression [ACRES] * ([IS07]/100)
Attribute_Domain_Values:
Unrepresentable_Domain: Acreage varies for each polygon
Attribute:
Attribute_Label: LU02
Attribute_Definition:
Numeric 4 digit code representing land use/land cover category, (2002)
Attribute_Definition_Source:
Modified Anderson classification system (see Land Use/Land Cover Classification System (2007).html)
Attribute_Domain_Values:
Codeset_Domain:
Codeset_Name: Modified Anderson land use/land cover classification system
Codeset_Source: Land Use/Land Cover Classification System (2007).html
Attribute:
Attribute_Label: LABEL02
Attribute_Definition: Description of land use/land cover category, (2002)
Attribute_Definition_Source:
Modified Anderson classification system (see Land Use/Land Cover Classification System (2007).html)
Attribute_Domain_Values:
Codeset_Domain:
Codeset_Name: Modified Anderson land use/land cover classification system
Codeset_Source: Land Use/Land Cover Classification System (2007).html
Attribute:
Attribute_Label: TYPE02
Attribute_Definition: Generalized (Level I) land use/land cover category, (2002)
Attribute_Definition_Source:
Modified Anderson classification system (see Land Use/Land Cover Classification System (2007).html)
Attribute_Domain_Values:
Codeset_Domain:
Codeset_Name: Modified Anderson land use/land cover classification system
Codeset_Source: Land Use/Land Cover Classification System (2007).html
Attribute:
Attribute_Label: IS02
Attribute_Definition:
Percent of each land use polygon covered by impervious surface for 2002
Attribute_Definition_Source: NJDEP
Attribute_Domain_Values:
Range_Domain:
Range_Domain_Minimum: 0
Range_Domain_Maximum: 100
Attribute_Units_of_Measure: percent
Attribute_Measurement_Resolution: 5
Attribute:
Attribute_Label: ISACRES02
Attribute_Definition: Acreage of each polygon covered by impervious surfaces for 2002
Attribute_Definition_Source: Calculated from expression [ACRES] * ([IS02]/100)
Attribute_Domain_Values:
Unrepresentable_Domain: Acreage varies for each polygon
Attribute:
Attribute_Label: CLASS86
Attribute_Definition:
Numeric code used to identify specific wetland types in the New Jersey Freshwater Wetlands Mapping Program (FWW). CLASS values refer to the original coding given a polygon as mapped from the 1986 imagery.
Attribute_Definition_Source: NJDEP
Attribute_Domain_Values:
Range_Domain:
Range_Domain_Minimum: 0
Range_Domain_Maximum: 999
Attribute_Units_of_Measure: UNITS
Attribute_Measurement_Resolution: 1
Attribute:
Attribute_Label: COWARDIN86
Attribute_Definition:
Alpha-numeric code used to describe wetland types, as mapped from the 1986 imagery
Attribute_Definition_Source:
Cowardin, L.M., V. Carter, F.C. Golet, and E.T.LaRoe. Classification of Wetlands and Deepwater Habitats of the United States, United States Fish and Wildlife Service. FWS/OBS-79/31.
Attribute_Domain_Values:
Codeset_Domain:
Codeset_Name:
Cowardin, L.M., V. Carter, F.C. Golet, and E.T.LaRoe. Classification of Wetlands and Deepwater Habitats of the United States, United States Fish and Wildlife Service. FWS/OBS-79/31.
Codeset_Source: Cowardin et al.: Fww.doc
Attribute:
Attribute_Label: CHANGE07
Attribute_Definition:
Flag that identifies whether polygon has undergone a land use/land cover change between 2002 and 2007
Attribute_Definition_Source: NJDEP
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: 0
Enumerated_Domain_Value_Definition:
Polygon has not undergone change in land use classification between 2002 and 2007
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 1
Enumerated_Domain_Value_Definition:
Polygon has undergone a change in land use classification between 2002 and 2007
Enumerated_Domain_Value_Definition_Source: NJDEP
Attribute:
Attribute_Label: ISCHANGE07
Attribute_Definition:
Flag that identifies whether polygon has undergone a change in estimated impervious surface percent between 2002 and 2007
Attribute_Definition_Source: NJDEP
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: 0
Enumerated_Domain_Value_Definition:
Polygon has not undergone a change in estimated impervious surface percent between 2002 and 2007
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 1
Enumerated_Domain_Value_Definition:
Polygon has undergone a change in estimated impervious surface percent between 2002 and 2007
Enumerated_Domain_Value_Definition_Source: NJDEP
Attribute:
Attribute_Label: STATUS
Attribute_Definition: Identifies development status of data set
Attribute_Definition_Source: NJDEP
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: DRAFT
Enumerated_Domain_Value_Definition: For internal review only
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: FINAL
Enumerated_Domain_Value_Definition: Final NJDEP approved data set
Enumerated_Domain_Value_Definition_Source: NJDEP
Attribute:
Attribute_Label: APPROVED
Attribute_Definition: Date data set was approved by NJDEP
Attribute_Definition_Source: NJDEP
Attribute_Domain_Values:
Unrepresentable_Domain: Unique date value
Attribute:
Attribute_Label: WMA
Attribute_Definition: Watershed Management Area
Attribute_Definition_Source: NJDEP
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: 01
Enumerated_Domain_Value_Definition: Upper Delaware Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 02
Enumerated_Domain_Value_Definition: Wallkill Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 03
Enumerated_Domain_Value_Definition: Pompton, Pequannock, Wanaque, Ramapo Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 04
Enumerated_Domain_Value_Definition: Lower Passaic, Saddle Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 05
Enumerated_Domain_Value_Definition: Hackensack, Hudson, Pascack Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 06
Enumerated_Domain_Value_Definition:
Upper and Mid Passaic, Whippany, and Rockaway Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 07
Enumerated_Domain_Value_Definition: Arthur Kill Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 08
Enumerated_Domain_Value_Definition: North and South Branch Raritan Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 09
Enumerated_Domain_Value_Definition:
Lower Raritan, South River and Lawrence Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 10
Enumerated_Domain_Value_Definition: Millstone Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 11
Enumerated_Domain_Value_Definition: Central Delaware Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 12
Enumerated_Domain_Value_Definition: Monmouth Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 13
Enumerated_Domain_Value_Definition: Barnegat Bay Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 14
Enumerated_Domain_Value_Definition: Mullica Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 15
Enumerated_Domain_Value_Definition: Great Egg Harbor Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 16
Enumerated_Domain_Value_Definition: Cape May Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 17
Enumerated_Domain_Value_Definition: Maurice, Salem and Cohansey Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 18
Enumerated_Domain_Value_Definition: Lower Delaware Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 19
Enumerated_Domain_Value_Definition: Rancocas Watershed Management Area
Enumerated_Domain_Value_Definition_Source: NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 20
Enumerated_Domain_Value_Definition: Assiscunk, Crosswicks and Doctors Watershed Management Area,
Enumerated_Domain_Value_Definition_Source: NJDEP
Attribute:
Attribute_Label: DV
Attribute_Definition:
Flag to identify vegetation polygons that show the effect of some stress
Attribute_Definition_Source: AIS/NJDEP
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: 0
Enumerated_Domain_Value_Definition: No vegetation stresses evident
Enumerated_Domain_Value_Definition_Source: AIS/NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 1
Enumerated_Domain_Value_Definition: Stress visible in needles of standing live conifers
Enumerated_Domain_Value_Definition_Source: AIS/NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 2
Enumerated_Domain_Value_Definition: Evidence of reduced vigor in non-conifer species
Enumerated_Domain_Value_Definition_Source: AIS/NJDEP
Enumerated_Domain:
Enumerated_Domain_Value: 3
Enumerated_Domain_Value_Definition: Man-made disturbance
Enumerated_Domain_Value_Definition_Source: AIS/NJDEP
Attribute:
Attribute_Label: Shape_Leng
Attribute:
Attribute_Label: Shape_Area
Attribute_Definition: Area of feature in internal units squared.
Attribute_Definition_Source: ESRI
Attribute_Domain_Values:
Unrepresentable_Domain: Positive real numbers that are automatically generated.
Overview_Description:
Entity_and_Attribute_Overview:
The attributes in this data set describe land use/land cover categories for each polygon from 2002 and 2007. The classification system used is a modified Anderson classification system. In addition, some attributes are included for non-tidal wetlands that use the Cowardin classification system. Percent impervious surface for each polygon is also given.
Entity_and_Attribute_Detail_Citation: none
Distribution_Information:
Distributor:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: NJDEP/OIRM/BGIS
Contact_Address:
Address_Type: mailing and physical address
Address: 401 East State Street, First Floor, PO Box 428
City: Trenton
State_or_Province: New Jersey
Postal_Code: 08625-0428
Country: USA
Contact_Voice_Telephone: 609-777-0672
Contact_Facsimile_Telephone: 609-292-7900
Contact_Electronic_Mail_Address: gisnet@dep.state.nj.us
Resource_Description: Downloadable Data
Distribution_Liability: See "Use Constraints"
Standard_Order_Process:
Digital_Form:
Digital_Transfer_Information:
Format_Name: AVSHP
Format_Version_Number: 9.3.1
File_Decompression_Technique: WinZip
Transfer_Size: 21.644
Digital_Transfer_Option:
Online_Option:
Computer_Contact_Information:
Network_Address:
Network_Resource_Name: <http://www.state.nj.us/dep/gis/lulc07shp.html>
Offline_Option:
Offline_Media: none
Recording_Format: none
Fees: none
Custom_Order_Process: none
Metadata_Reference_Information:
Metadata_Date: 20100715
Metadata_Contact:
Contact_Information:
Contact_Person_Primary:
Contact_Person: John Tyrawski
Contact_Organization: NJDEP/OIRM/BGIS
Contact_Position: Research Scientist
Contact_Address:
Address_Type: mailing and physical address
Address: 401 East State Street, Box 428
City: Trenton
State_or_Province: New Jersey
Postal_Code: 08625
Country: USA
Contact_Voice_Telephone: 609-677-0672
Contact_Facsimile_Telephone: 609-292-7900
Contact_Electronic_Mail_Address: gisnet@dep.state.nj.us
Metadata_Standard_Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata_Standard_Version: FGDC-STD-001-1998
Metadata_Time_Convention: local time
Metadata_Extensions:
Online_Linkage: <http://www.esri.com/metadata/esriprof80.html>
Profile_Name: ESRI Metadata Profile
Generated by mp version 2.9.6 on Thu Jul 15 13:43:26 2010
