Archived Photos

(click on thumbnail photos to enlarge in bottom window)

October 20, 2009

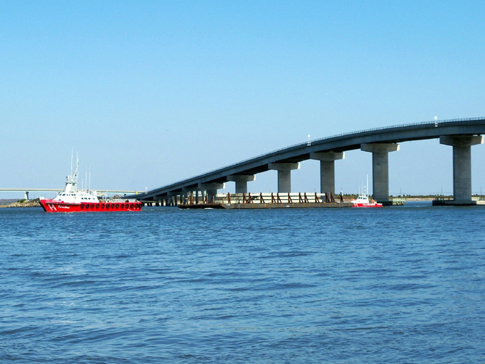

Concrete test piles are being delivered to the site by barge from the precasting yard in Virginia. The barge is crossing under the Long Port Bridge with the Route 152 bridge in the background.

Crews perform a static load test on the first Control Modulus Column installed within the Ninth Street Route 52 bridge approach.

Crews are working on the installation of cofferdams at Beach Thorofare.

Crews installing the Control Modulus Columns as part of the ground improvement work within the Ninth Street Route 52 bridge approach.

This view is of the completed Route 52 bridge (Contract A) with the fishing bump-out over Rainbow Channel.

An 80-foot long concrete pile is being installed on Garrets Island.
.
