route 52 causeway bridge replacement graphic

Archived Photos

(click on thumbnail photos to enlarge in bottom window)

February 14, 2008

A section of the existing causeway over Rainbow Channel was removed with the newly constructed Route 52 northbound bridge deck on the right.

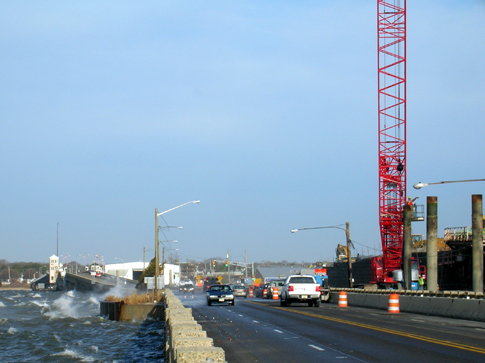

The existing Route 52 bridge over Elbow Thorofare is being slammed by waves on a windy day. The Route 52 northbound bridge deck is being constructed on the right.
Crews are preparing to install wick drains on the Rainbow Island embankment.


Crews work on the demolition of the first span of the existing Route 52 causeway over Rainbow Channel from a barge mounted crane.

Crews place temporary formwork on the fascia of the northbound bridge deck in preparation for pouring the bridge deck.

Crews installing wick drains for the Route 52 southbound embankment.
.
