Archived Photos

(click on thumbnail photos to enlarge in bottom window)

November 11, 2008

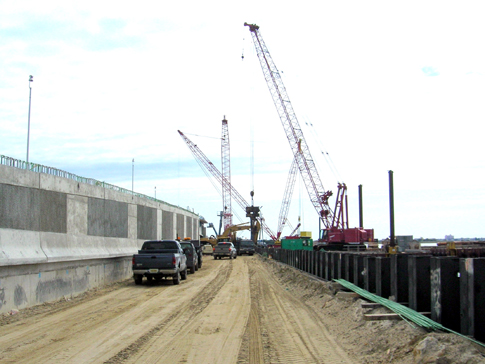

This view is of the future access driveway on Rainbow Island. On the left is the permanent retaining wall with architectural features and on the right is the west bulkhead sheeting.

Crews remove the existing timber pile to allow for the construction of the proposed structure.

This view is of the completed Route 52 northbound bridge over Rainbow Channel with cofferdams for the southbound bridge footings in the foreground.

Crews install a load transfer mat above vibro concrete columns on Rainbow Island. This was required to prevent future settlement of the soil within this area.

The Route 52 bridge as seen from Somers Point.

.
